ALBION PERLAN 120
-
-
-
ALBION PERLAN 120
Sliding Door Hardware
Installation of Unframed glass door with ALBION PERLAN 120
Specification Text
ALBION PERLAN 120 sliding door hardware leaf …. cmALBION PERLAN 120 sliding door hardware for unframed glass door, leaf …. cm
Specification
-
-
-
-
ALBION PERLAN 120
ALBION PERLAN 120
Specification
-
-
-
-
ALBION PERLAN 120
Standard Installation

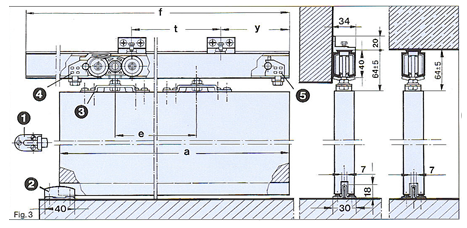

Fig.3 shoes how the ALBION PERLAN 120 is installed to carry a single-leaf sliding door.1. Buffer with base (optional)
2. Floor guide
3. Carrier plate
4. Door Stop, adjustable (Hold open spring, detachable)
5. Buffer, adjustable
Specification
-
-
-
-
ALBION PERLAN 120
Product Features:
• 4 high quality precision ball bearings
• Triple pendulum suspension for best possible load distribution
• Special track geometry for precision action, no lateral contact
• Rubber bearings for door hangers
• 4 damper rings prevent transmission of roller noise to door panel
• Channel rail, anodized light alloy; hanger bolts and nuts stainless steel
• Outdoor installation possible
• Internally mounted, sealed ball bearings
• Large diameter rollers
• Low overall height
• Vertical and lateral adjustment
• Wall-attachment angles designed for lateral adjustment
• Channel rail can be fine-adjusted after installation
• Multiple pendulum bearing system automatically compensates for alignment errorsRange of Appliacations:
• For all single-leaf and two-leaf sliding doors
• For all door material s, eg. Wood, metal and glass
• Wall and ceiling mounting
• For doors weighting up to 120kg per leaf
Specification
-
-
-
-
SLIDING DOOR SYSTEM-120 KGS
SLIDING DOOR SYSTEM-120 KGS
Specification
-
